UV-cured CIPP liner hose is a high-performance trenchless rehabilitation material based on ultraviolet cure-in-place pipe technology. It adopts a glass fiber-reinforced composite structure as the main body, and is made into a foldable flexible hose after being impregnated with special photosensitive resin. Featuring full-pipe lining and light-initiated curing process, this product requires no heating and produces no flue gas emissions, ensuring eco-friendly and safe construction.

The cured lining pipe features high compactness, corrosion resistance and water pressure resistance, with structural strength and service life comparable to brand-new pipelines. It is suitable for structural rehabilitation of small, medium and large-diameter, long-distance, straight and gently curved pipelines, and can quickly restore pipeline operation capacity with minimal excavation. It is a mainstream and efficient solution for urban pipeline renewal and renovation.

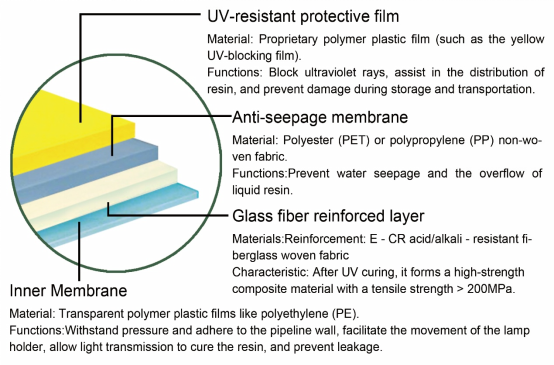

Product Structure Introduction

It forms a dense grid structure after curing, featuring fast construction, zero excavation, long service life, zero emissions, and excellent mechanical and chemical stability.

· Full structural rehabilitation capability

· Short curing time, construction period shortened by 80% compared with excavation and pipe replacement

· No dust generated throughout the construction process

· Pipeline strength improved by 1.5 times after rehabilitation

· Service life extended by up to 50 years

Suitable for rehabilitation and renewal of drainage pipelines of various shapes and materials.
