Tianjin Energy Solution Technology CO., LTD.- One-Stop Provider of Full-Industry-Chain Pipeline Network Defect Treatment Solutions

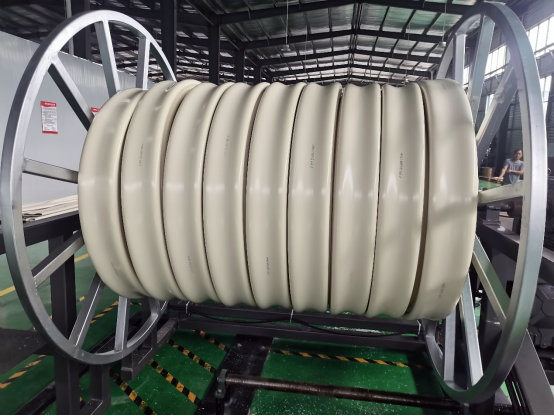

Thermoplastic Formed Hose（FIPP）

Introduction

A trenchless rehabilitation solution specially designed for special-shaped low-pressure pipelines such as small-diameter and reducing pipes, which efficiently solves the problems of renewal and rehabilitation of old pipelines.

Core Advantages

• Jointless Connection

Excellent ductility and environmental adaptability, no additional joints required for pipeline connection, greatly improving construction efficiency.

• Reusable

Only physical changes occur during curing, reusable after heating, green and eco-friendly while reducing costs.

• High Cost Performance

Fast construction speed, low quality risk, low investment cost and remarkable comprehensive benefits.

Performance Exceeds National Standard

The core mechanical properties are comprehensively better than the national standards, building a solid defense for pipeline safety.

Performance Index	National Standard Requirement	Actual Performance
Bending Strength	≥40MPa	68.8MPa
Flexural Modulus	≥1600MPa	3100MPa
Tensile Strength	≥30MPa	45.2MPa
Elongation at Break	≥25%	140%

Special-Shaped Rehabilitation Capability

Easily cope with complex working conditions:

• Circular to square pipeline transition rehabilitation

• Rehabilitation of reducing interfaces with pipe diameter change rate ≥ 30%

• Rehabilitation of various elbows within 30°
